ST-71

产品图片
PRODUCT IMAGE

产品图片

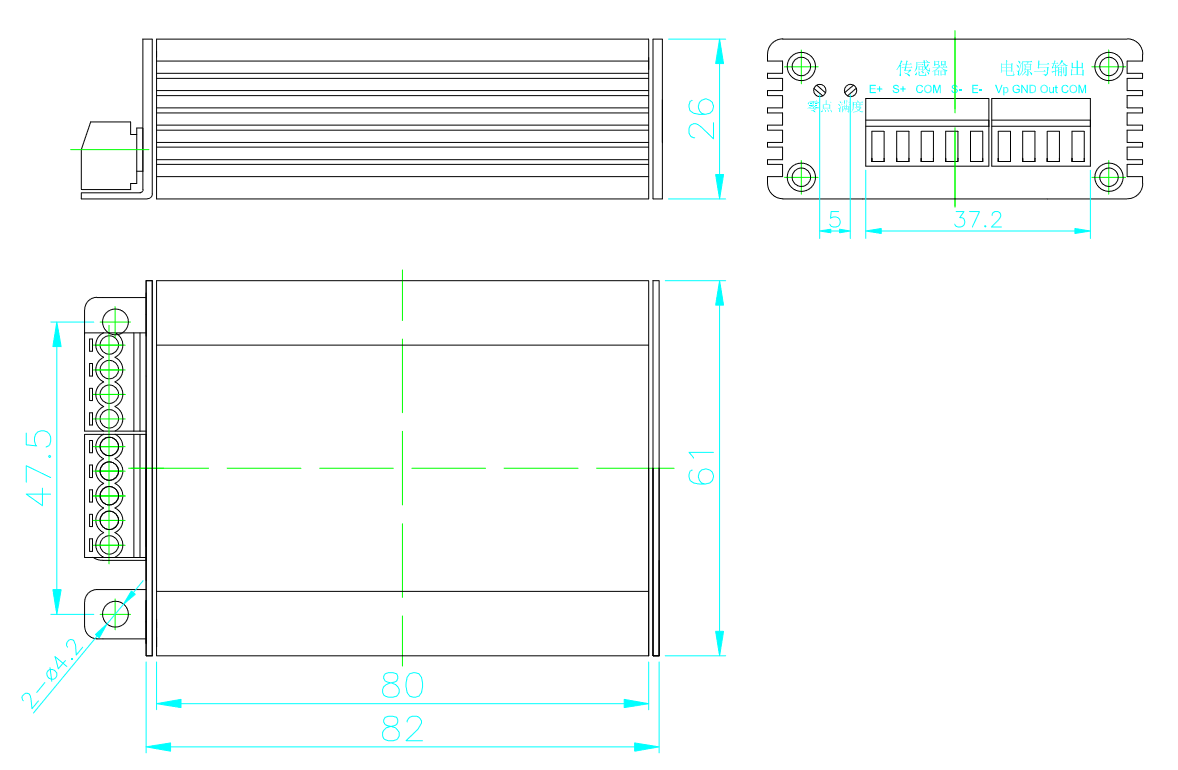

安装尺寸
MOUTING DIMENSION

安装尺寸

特点与用途
FEATURES & APPLICATIONS

采用专用防水接头,

补偿调节采用高稳定性的多圈电位器

盖板有防水橡胶垫圈,防水,防尘,适用于环境条件恶劣的工业现场

防止感应雷和浪涌信号对传感器的损坏

多个信号集成,防护等级IP65

一进一出接线盒

Using special waterproof connector

Use the multi-turn potentiometer with high stability to do compensation and adjustment

Cover with waterproof rubber gasket which could be waterproof and dustproof, suitable for harsh industrial conditions

Prevent sensor damage from lightning induction and surge signal

Multiple signal integration with IP65 protection

Use one input and one output junction box


技术参数
SPECIFICATIONS

参数

Specifications

技术指标/Technique

输出规格

Output specification

±10V   / 010V / 420mA

输出线性

Output linear

优于better than 0.05%

综合精度

Comprehensive accuracy

优于better   than 0.1%

接受灵敏度

Accept sensor

0.3mV/V8   mV/V

输入负载

Input load

1只传感器   load cells

输出波纹

Output ripple

2mVp-p

输出负载

Output load

500Ω(输出负载电阻)

激励电压

Excitation voltage

5VDC

电源供给

Power supply

830VDC

整机功耗

Power waste

0.2W

工作温度范围

Operation temp range

-2060

单件重量

Weight approx.

0.17kg

材料

Material

Aluminum   ally(铝合金)

防护等级

IP Class

IP66
